COALTROL LONG LIFE & LOW NOISE UHMW-PE ROLLER
For coal-handling system that require long time operating, we have to operate the facilities constantly even at night.
Therefore, the utilization rate of coal handling system is very important and and to ensure that the facilities are not shut down only for maintenance.
To meet these needs, we have developed high quality UHMW-PE Roller,
Long life time, very low noise, very light weight and easy to handle roller, these benefit will give to maximize the utilization of coal handling system.
COALTROL is a registered trademark in Indonesia for UHMW-PE Idlers, which are manufactured by Special Manufacturer from Korea.
This Coaltrol LOW NOISE UHMW-PE Idler was developed and specially designed rollers to the various users in material handling applications.

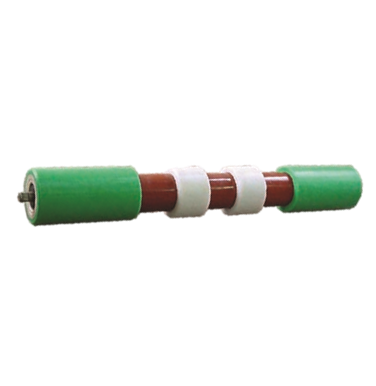

UHMW-PE Carrier & Impact, Return and Guide rollers are available in rough condition conveyor system.

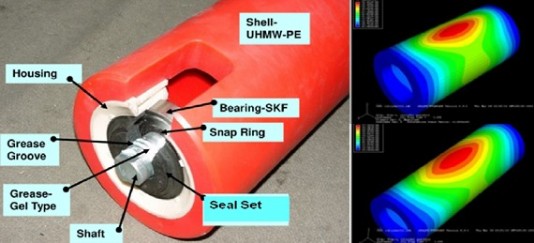

General Specification

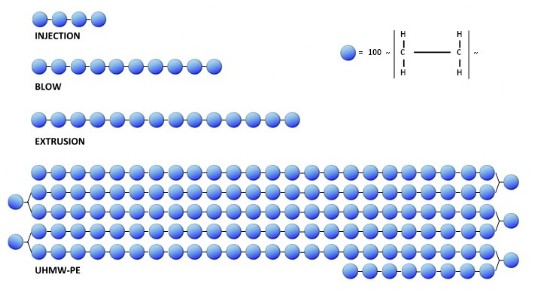

• UHMWPE Body – Molecular Weight more than 3,000,000
• Shell Color - Customized Color
• Shell Thickness – More than 22mm
• Seal – Rubber
• Seal Cap – Polymer with high impact strength
• Bearing – Schaeffler Korea FAG ZZ C3./ 2RS
Key Features and Benefits:
• Very Low Noise – less than 65db (Blet speed 3.2m/s)
• Excellent TIR – Less than 0.1mm(< length 600mm)
• Impact strength – it is virtually unbreakable
• Light weight – easy to handle without special equipment
• Electrical insulation – it is a good insulator
• Waterproof – it doesn’t absorb water
• Chemical resistance – resists corrosive chemicals (Sulphuric Acid, Caustic Soda)
• Abrasion resistance – rated better than carbon steel for sliding abrasion applications
• Low coefficient of friction – it does not require lubrication
• Fire rating – achieved UL94 class V0
